Suitable for the production of a variety of materials, including PVC, TPO, PE and other waterproof sheet and a variety of waterproof sheet with different product structure.

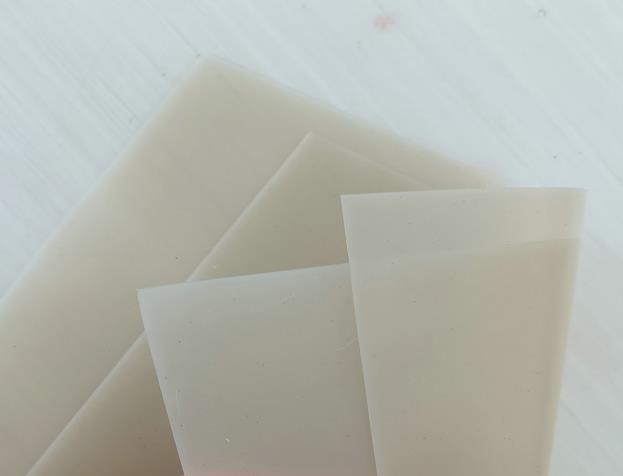

Homogeneous sheet (Code H)
Waterproof material without internal reinforcement or backing material.
With fiber backing sheet (code L)
Coating with fabrics such as polyester nonwovens and other composite materials on the surface of waterproof coil.
Internal reinforcement sheet (code P)
Polyester mesh cloth in the middle of the sheet to enhance the waterproof.
Internal reinforcement sheet (code G)
Glass fiber mesh cloth in the middle of the sheet to enhance the waterproof.

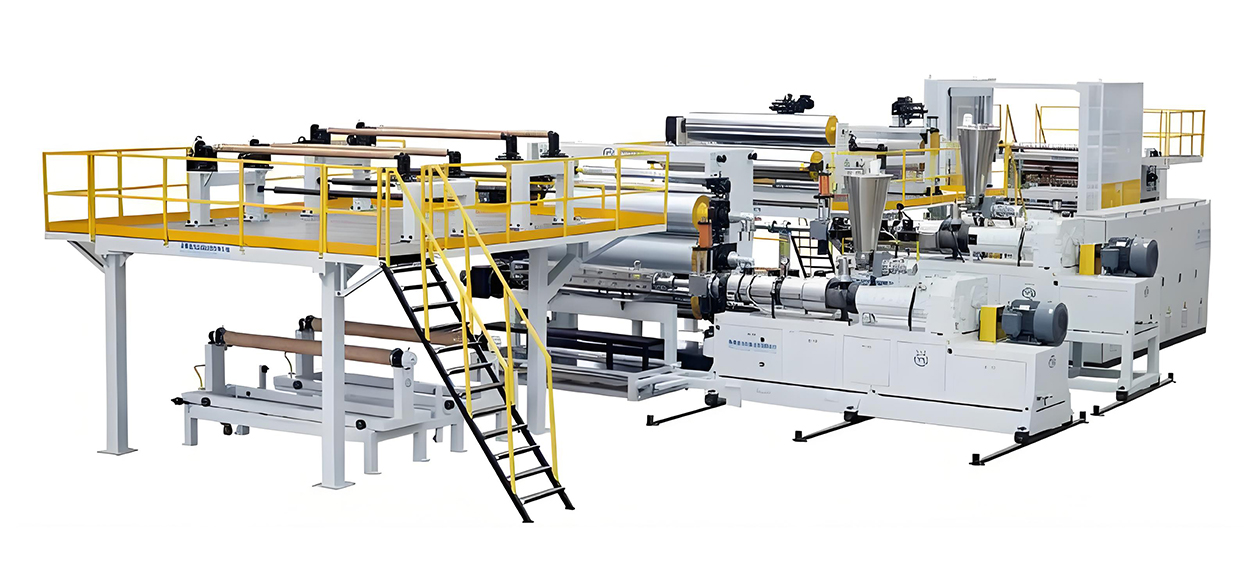

Technical Parameter
| Type | Suitable material | Products width | Products thickness | Extruder model | Designed capacity |
| YSB150-2300 | PP/PE/TPO/EVA | 1000-2000mm | 0.5-3mm | 150/38 | 600-700kg/h |
| YSB150-3500 | PP/PE/TPO | 1500-3000mm | 0.5-3mm | 150/38, 120/38 | 900-1000kg/h |
| YSBP170-4400 | PP/PE/TPO/EVA | 1500-4000mm | 0.5-3mm | 170/38, 120/38 | 1200-1300kg/h |
| YSB200-7500 | PE | 5000-7000mm | 1-2mm | 200/30, 120/38 | 2000-2200kg/h |
| YSZ130-2500 | PVC/CPE | 1000-2000mm | 0.5-3mm | Z80/156 | 450-550kg/h |
Usage
Roof waterproofing of industrial and civil buildings, including planting roofs, flat roofs, sloping roofs. Underground waterproofing of buildings: including reservoirs, dams, pool waterproofing, tunnels, grain depots, civil defense projects, landfill, artificial lake waterproofing and so on.
Applicable Solutions
We are commited to providing you with professional, applicable solutions because we have an average of over 10 years of experience with each type of equipment.
After-Sales Services
We provide $500 free parts every year, and free replacement for damaged parts within the warranty period.
Open Factory
Our factory is open to all customers and welcome to visit. We really enjoy face-to-face communication.
Want to visit our factory?
Make an appointment with us and we will help you arrange everything.
Our Factory and Equipment Details
